Old Swiss army instruments....


  • Please log in to reply
4 replies to this topic

#1 Flightpath

Flightpath
  • Members
    • Member ID: 185,683
  • 9 posts
  • Gender:Male

Posted 03 April 2019 - 07:29 AM

Here are some of my Swiss army instruments:

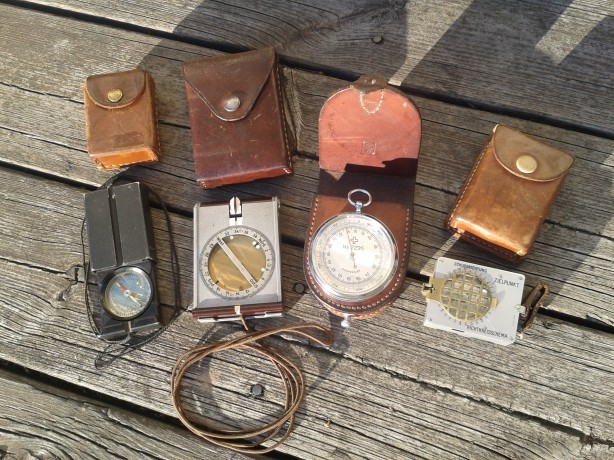

Left to Right:

1944 Recta 'matchbox' alloy compass, S/N shows it was made in 1944.

1943 Büchi marching compass Pattern 1932, has a 1943 inscription on it. (see middle photo).

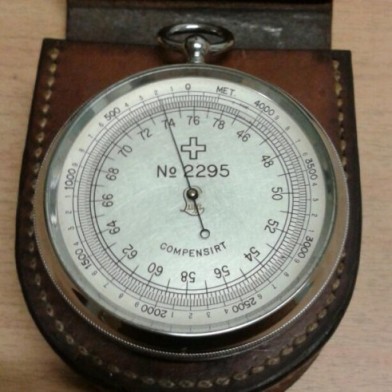

1930s Lufft pocket altimeter, German made with Swiss property mark and silvered face (see lower photo).

1920s Büchi Artillery compass/level (GB Patt. 1916, Spanish Patt. 1920, Swiss Patt. 1929).

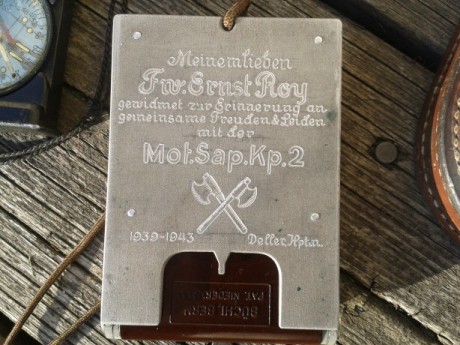

The 1943 inscription on the Büchi compass translates:

"My good friend Sgt. Major Ernest Roy, dedicated to the memory of common joys and sufferings with Combat Engineer Company 2, 1939-1943 Capt. Deller".



Hope you like them,



I'll do a more detailed study of the 1920s Büchi artillery compass later, it really is a nice intricate  little instrument.



cheers, John

Attached Images

  • 02 24%.jpg
  • 03 75%.jpg
  • 04 60%.jpg

Edited by Flightpath, 03 April 2019 - 07:41 AM.


#2 RRA227

RRA227
  • Members
    • Member ID: 185,404
  • 415 posts
  • Gender:Male
  • Location:Hokey,Pa.

Posted 03 April 2019 - 08:27 AM

Nice items. Rich A. in Pa.



#3 Flightpath

Flightpath
  • Members
    • Member ID: 185,683
  • 9 posts
  • Gender:Male

Posted 03 April 2019 - 09:12 AM

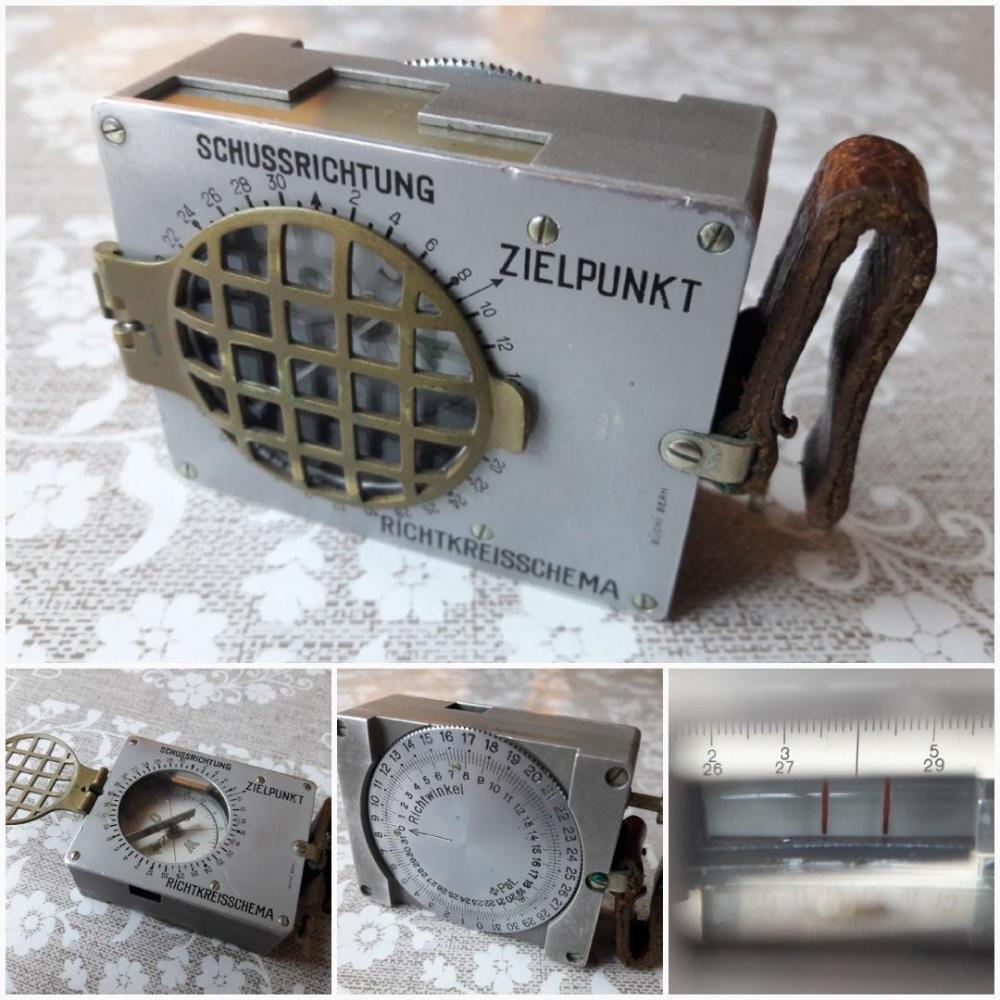

Here are a few closer photo of the little artillery compass/level (called a sitometer in old Swiss military papers).



Being an instrument maker myself I love instruments like this!



Through the viewing window can be seen a bubble level, once the compass is level the button on the end is pushed, this moves a stainless mirror to reveal the compass rose and unlock it. The rotating 360 degree part on the back is part of the artillery side of the compass. I have seen much later versions with this part not attached presumably these are only used as compasses.........



Hope you like it (actually I have two of them) ;) Cheers, John

Attached Images

  • thumbnail1.jpg

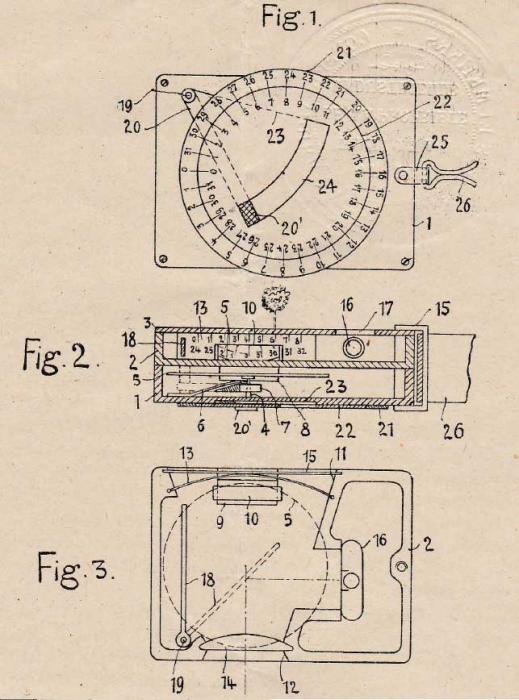

  • British Patt. 1916.jpg


#4 The Meatcan

The Meatcan
  • New Members
    • Member ID: 185,288
  • 24 posts
  • Gender:Male
  • Location:Washington

Posted 03 April 2019 - 04:20 PM

Those are excellent pieces! As one would expect for Swiss service, they appear to be very well-made instruments.
Thanks for sharing!
Terry

#5 Tony v

Tony v
  • Members
    • Member ID: 185,175
  • 147 posts
  • Gender:Male
  • Location:North Wales, Pa.

Posted 03 April 2019 - 07:35 PM

John



      Excellent collection ! Thank you for posting them.



Tony
