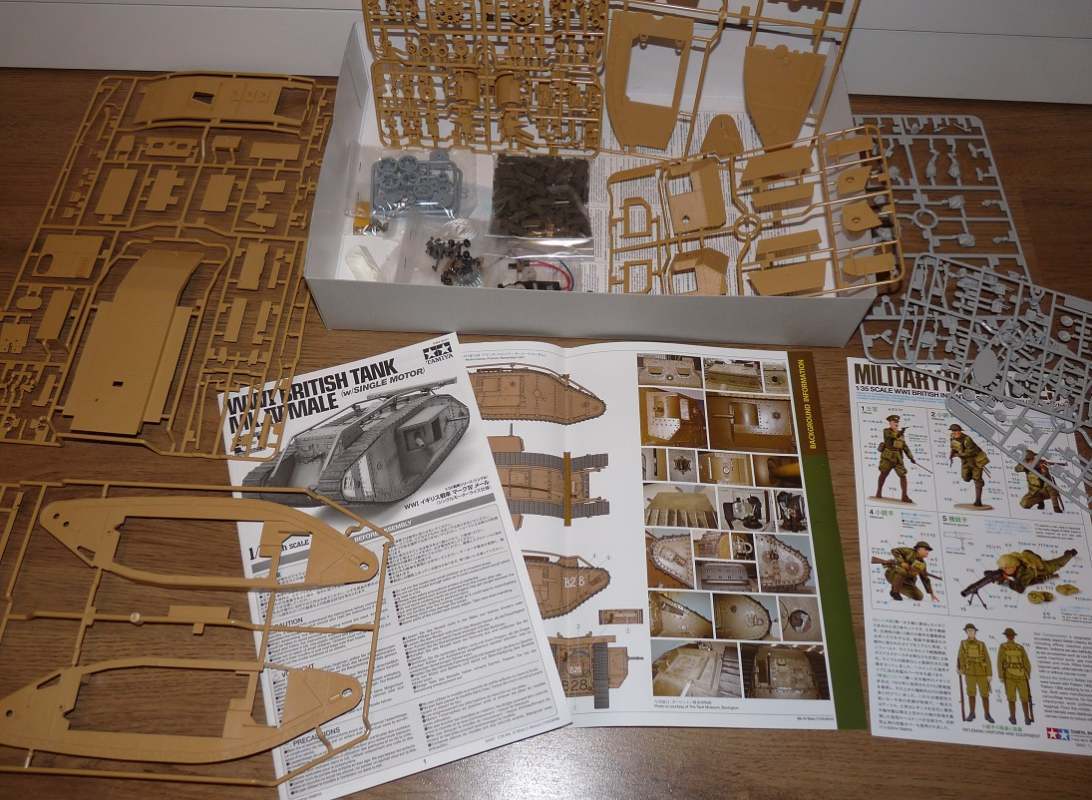

Proud Kraut Posted September 7, 2023 #1 Posted September 7, 2023 Welcome to another modeling project! When I saw this model some months ago I couldn´t resist. I always wanted to build some WW I Tank (or dio). This Tamiya 1/35 scale kit comes with a set of 5 figures (which scream for a dio) and is motorized (which makes no sence with a dio) so we´ll see. I´ll start with some box art and a first view into the box...

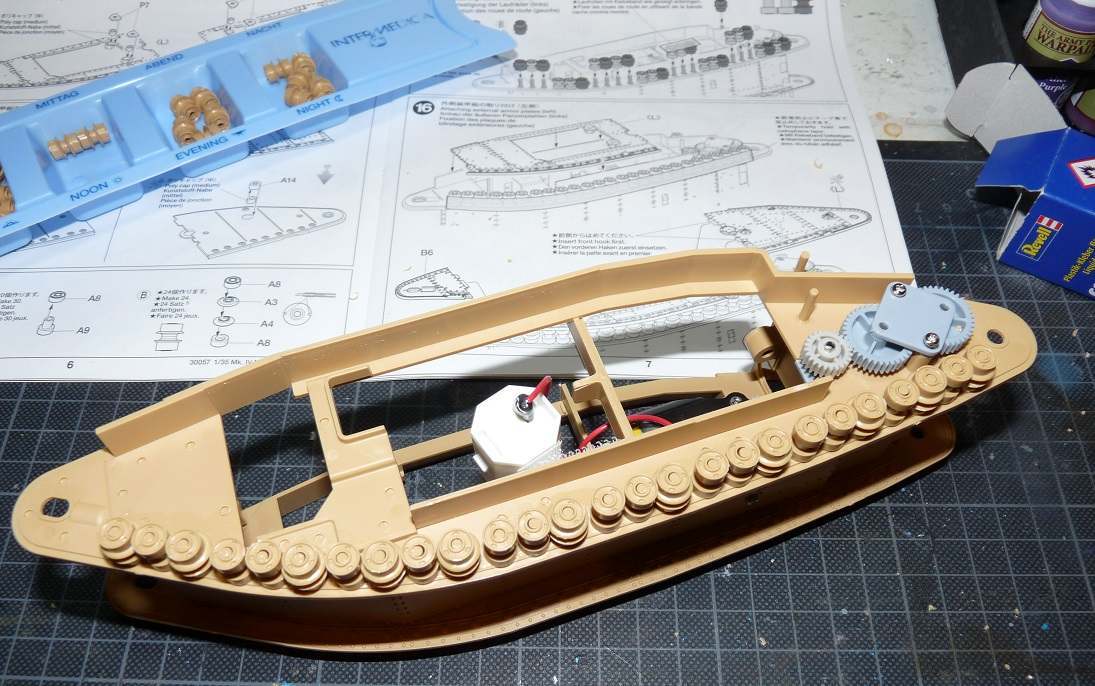

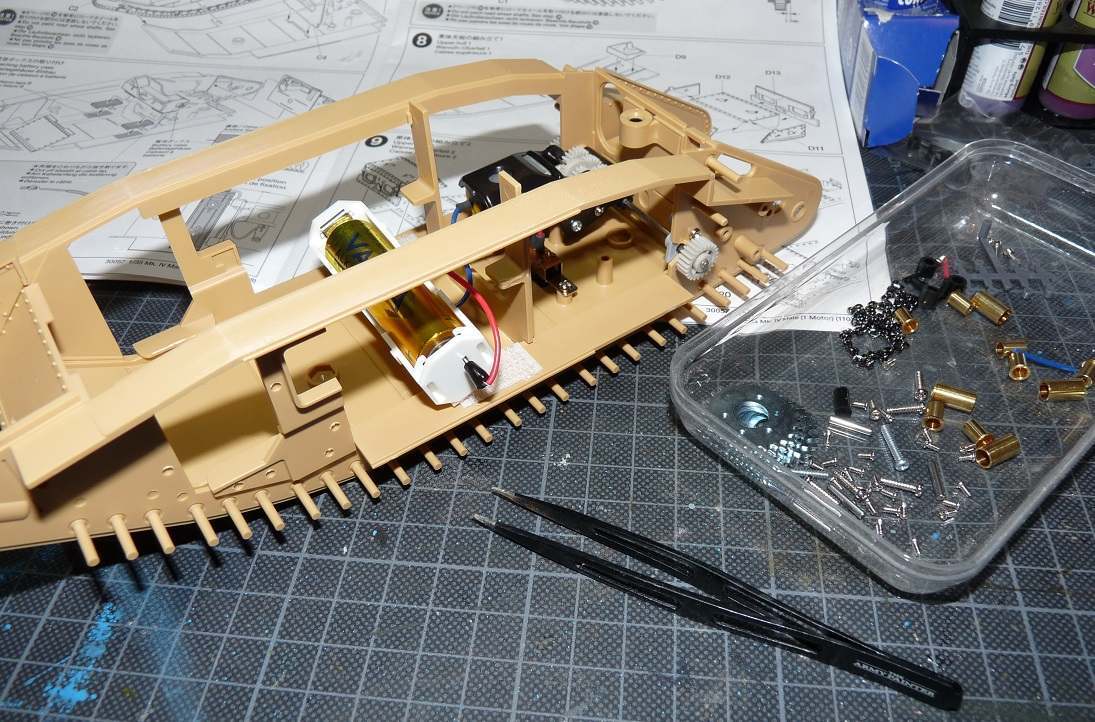

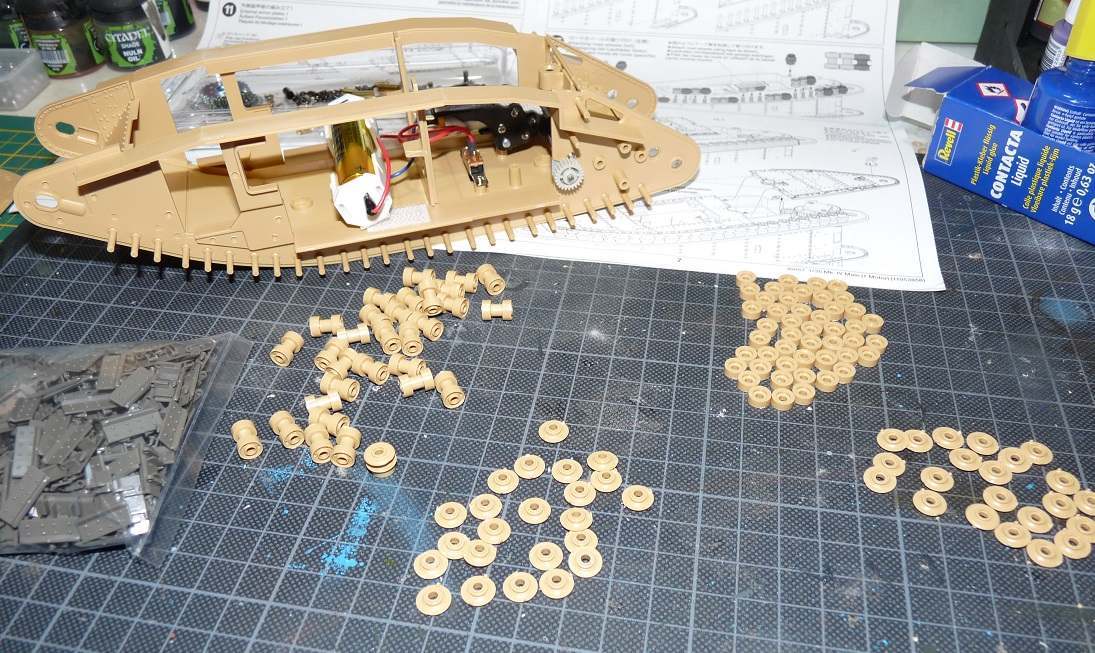

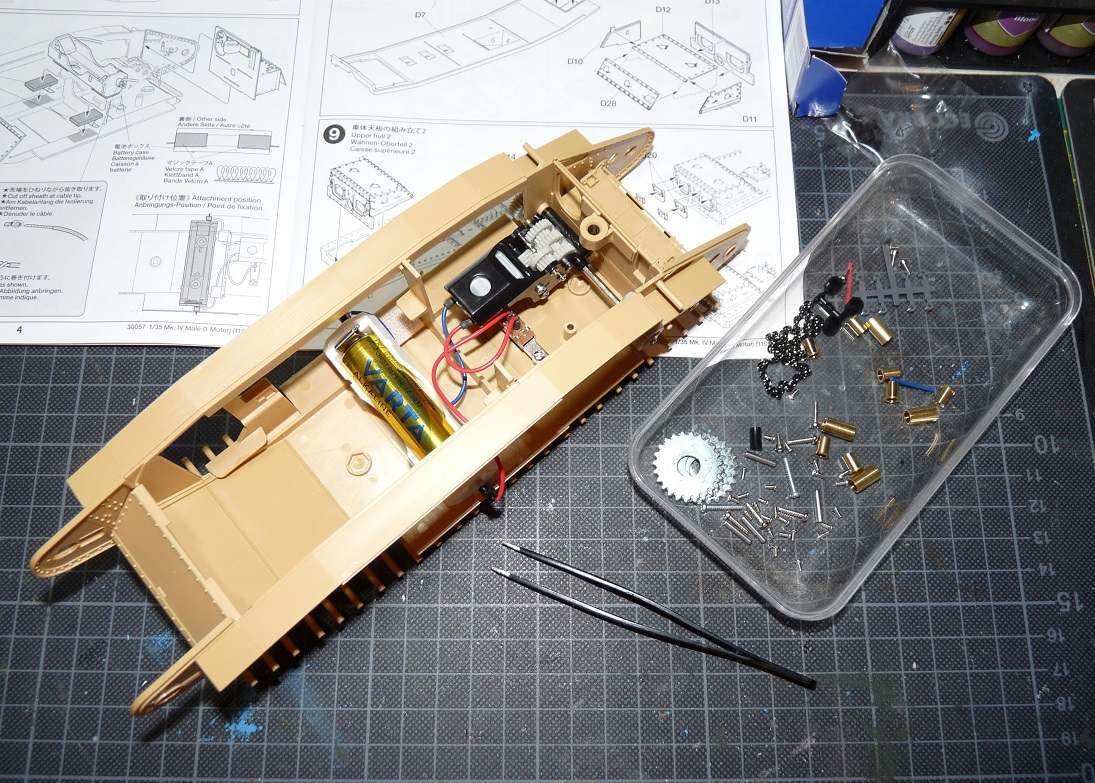

Proud Kraut Posted September 8, 2023 Author #3 Posted September 8, 2023 I don´t know when the set was released but the manual is marked with "copyright 2014". I started with the hull, battery case and gearbox.
Preppy Picker Posted September 8, 2023 #4 Posted September 8, 2023 Looking forward to the figure assembly.
Gunner87 Posted September 9, 2023 #5 Posted September 9, 2023 That's great Proud Kraut, thanks for sharing and looking board to see the progress. For any of our members that didn't know the British Mark I, which the Mark IV was derived from, was the first ever tank to see combat. The Male Mark IV was armed two six pounder guns and four .303 Lewis guns while with Female Mark IV was armed with six Lewis machine guns. Gunner ...

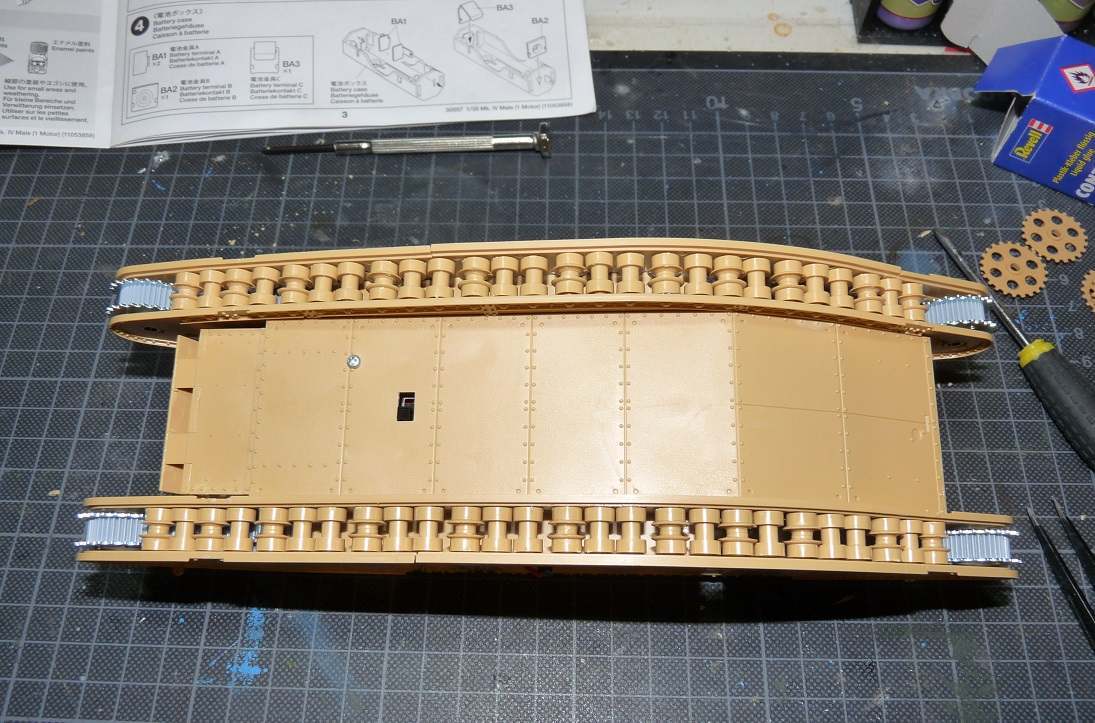

Proud Kraut Posted September 9, 2023 Author #6 Posted September 9, 2023 Thanks PP and thanks to Gunner for these additional informations. Beside this fact (first tank) I love the iconic shape of the MARK tank. The model hasn´t too much parts, most of them are wheels.

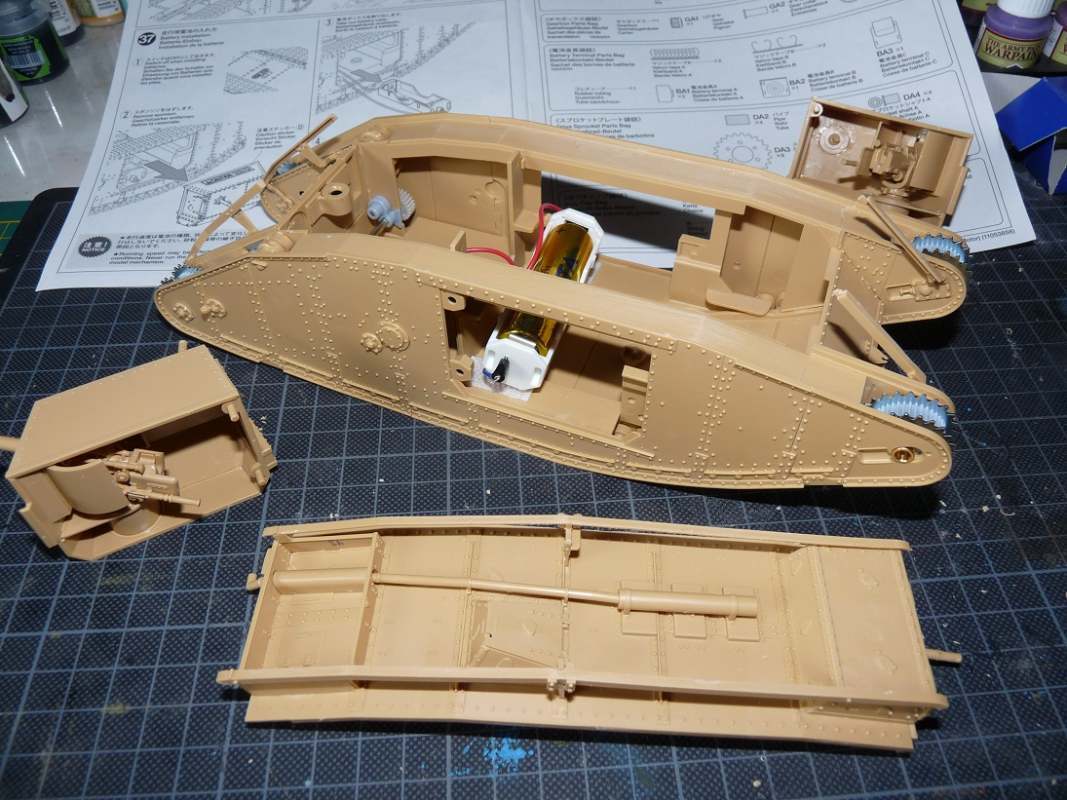

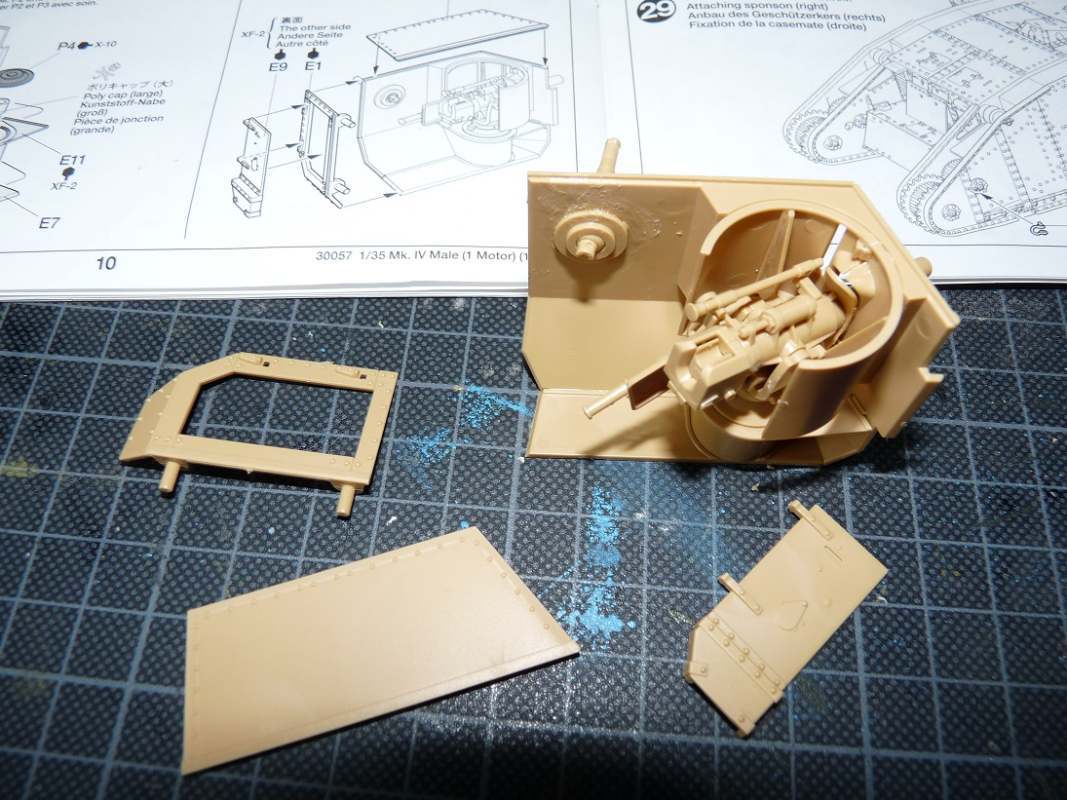

Proud Kraut Posted September 10, 2023 Author #7 Posted September 10, 2023 Assembling of the guns and the hull. Some parts are removeable e.g. for replacing the battery.

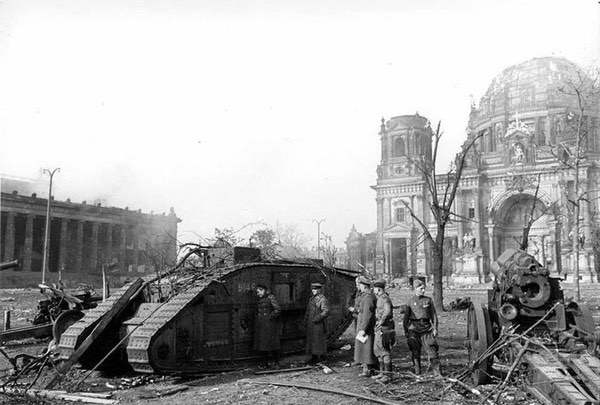

Gunner87 Posted September 11, 2023 #8 Posted September 11, 2023 6 hours ago, Proud Kraut said: Assembling of the guns and the hull. Some parts are removeable e.g. for replacing the battery. Looks great. You guys may know of this 1945 photograph, one of a number, taken in Berlin and showing a Mark V Composite (Hermaphrodite), tank number 9146. Apparently there were two found in Berlin at that time, the second being Mark V Female. They had originally been donated by Britain to the White Russians but on defeat were taken by the Soviets and stood as gate guardians at Smolensk until the German invasion, after which they were taken to Berlin as trophies. Gunner

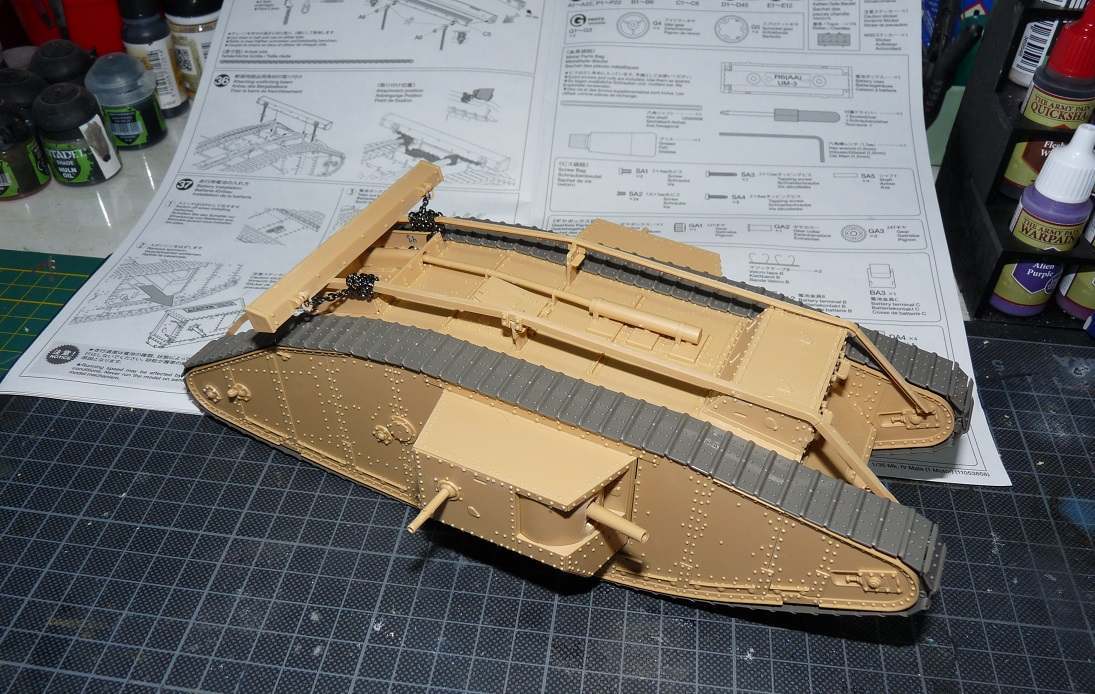

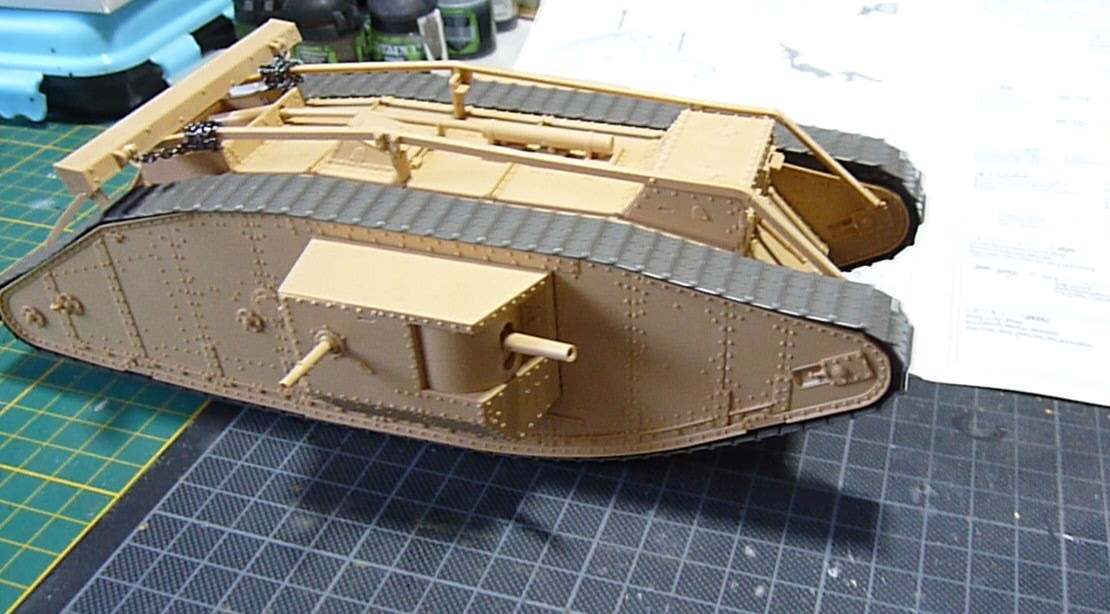

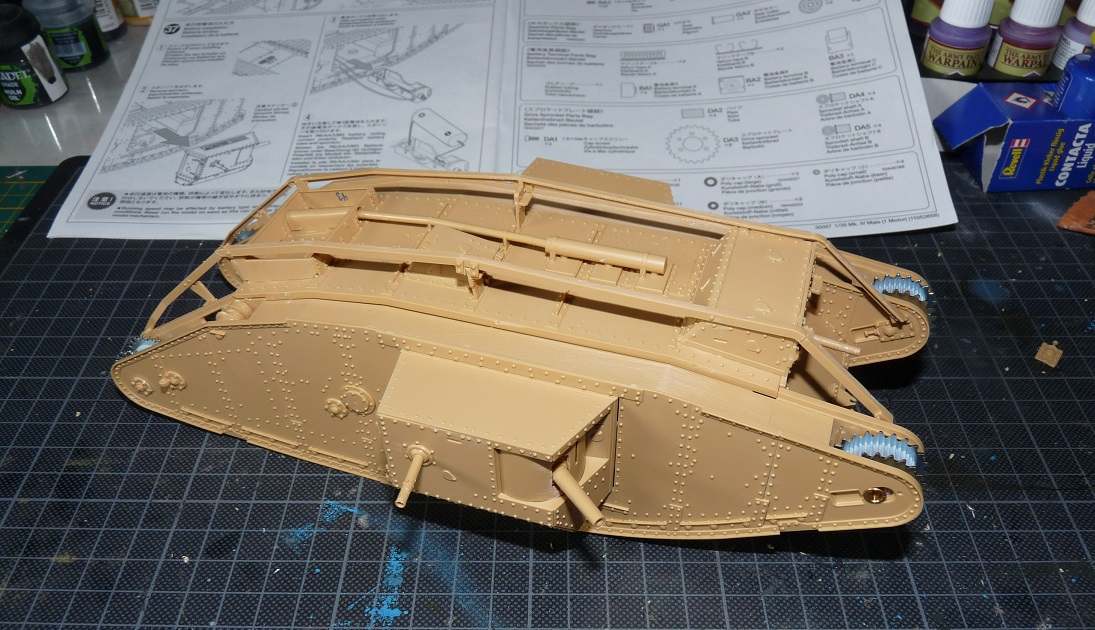

Proud Kraut Posted September 11, 2023 Author #9 Posted September 11, 2023 Gunner, this is an awesome photo, I haven´t seen it before. Great background info, thanks! I´m nearly done with the MARK now. Building it was much fun, as usual with Tamiya kits, the fitting of the parts was perfect. Here are some more pics.

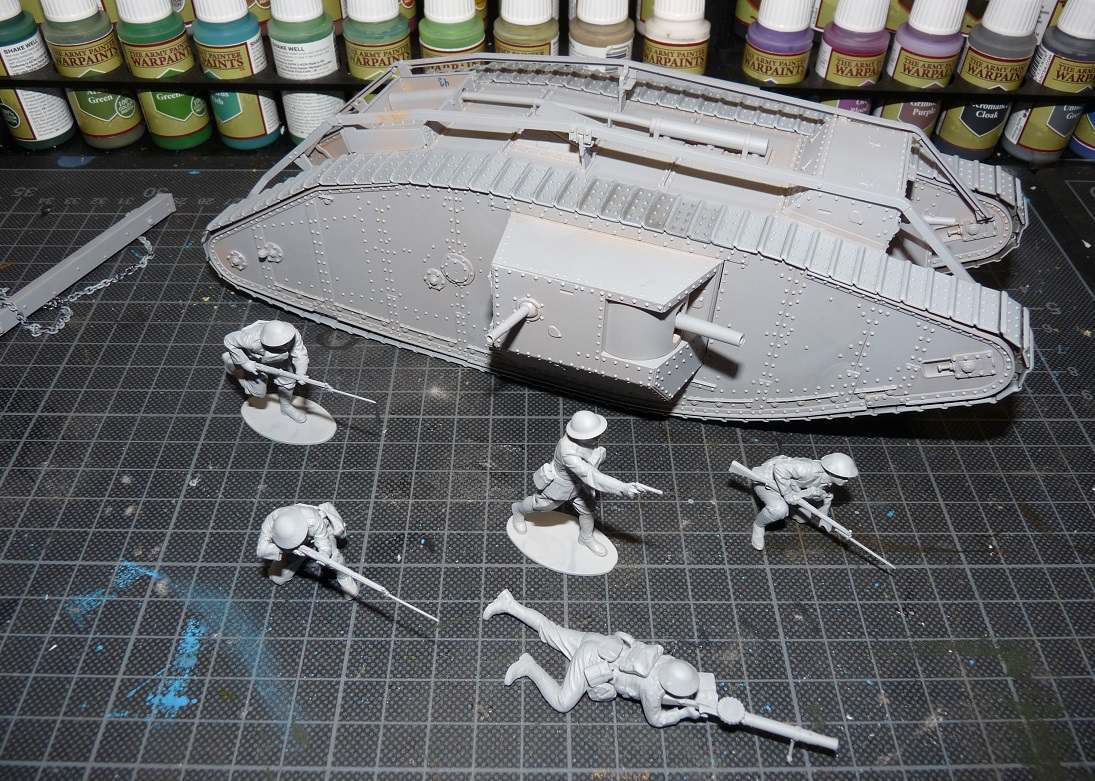

Proud Kraut Posted September 22, 2023 Author #11 Posted September 22, 2023 Tank and Infantry now under a first coat of grey primer.
Gunner87 Posted September 22, 2023 #12 Posted September 22, 2023 1 hour ago, Proud Kraut said: Tank and Infantry now under a first coat of grey primer. Coming along nicely. It must have been a huge shock to the German troops who faced the tank in 1916. ps for our members that weren't aware, though I'm sure most are. The 'tank' got it's name from its resemblance to a water tank which they were said to be before the initial deployment! Please keep us updated as you progress..... Gunner

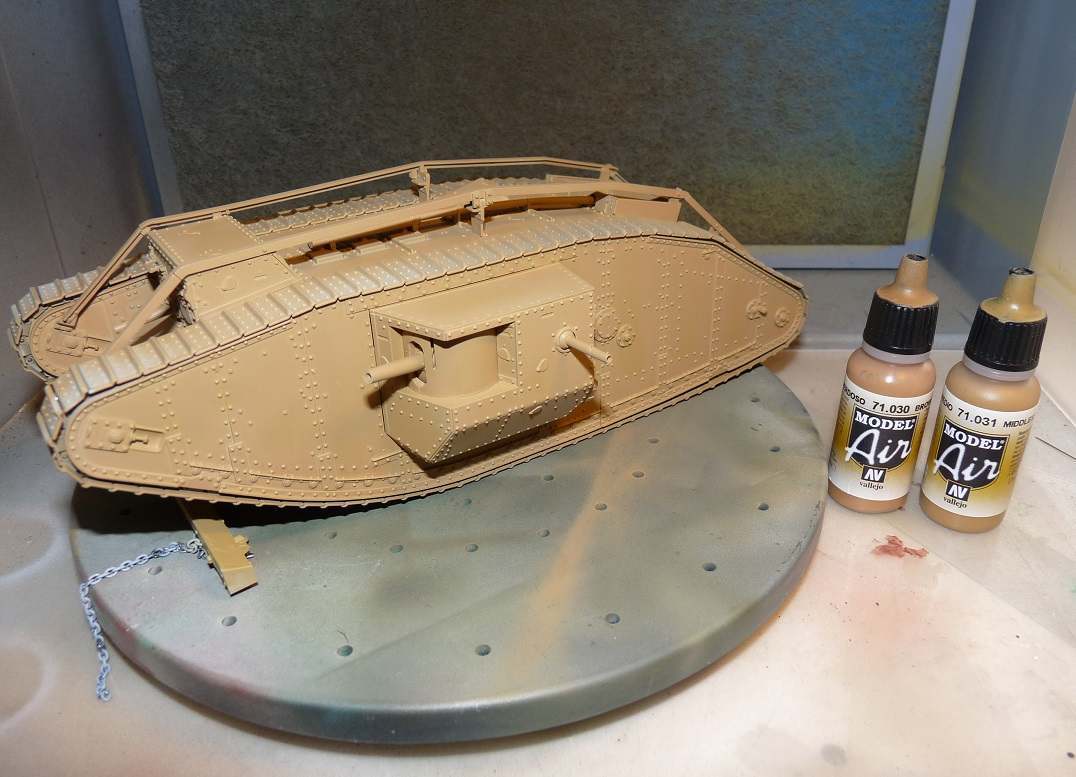

Proud Kraut Posted September 24, 2023 Author #13 Posted September 24, 2023 Base color of the MARK IV is Vallejo 71.030 "Brown Green", highlighted (barely visible on the photo) with 71.031 "Middlestone".
ArtyScout Posted September 27, 2023 #15 Posted September 27, 2023 This is coming along nicely. I like the fact that it came with the 5 figures. Semper Fi. Manny
The Meatcan Posted September 29, 2023 #16 Posted September 29, 2023 great progress, Lars. Looking forward to seeing a video of your build "in action" 😀 Terry
Old Marine Posted October 5, 2023 #17 Posted October 5, 2023 Another great build from a top notch model maker. It looks great. Do the tracks work?

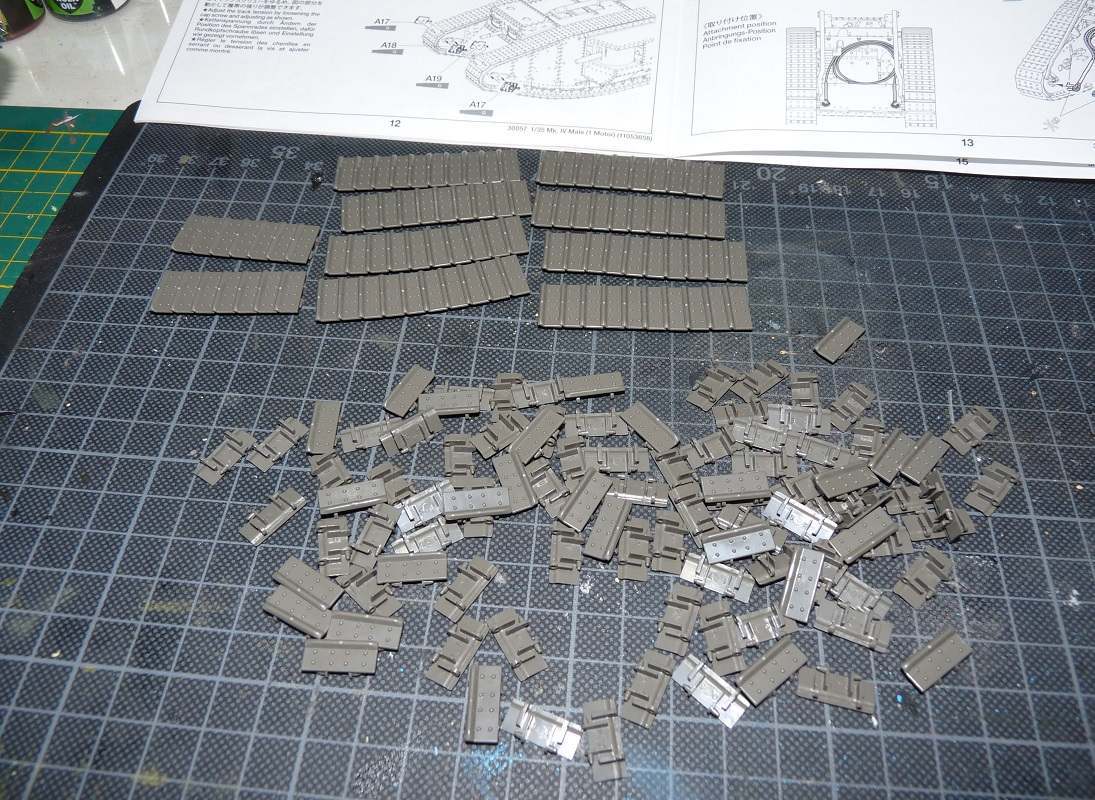

Proud Kraut Posted October 5, 2023 Author #18 Posted October 5, 2023 Thank you all for your kind comments! Yes, the tracks do work. At this point they are in the paintshop.

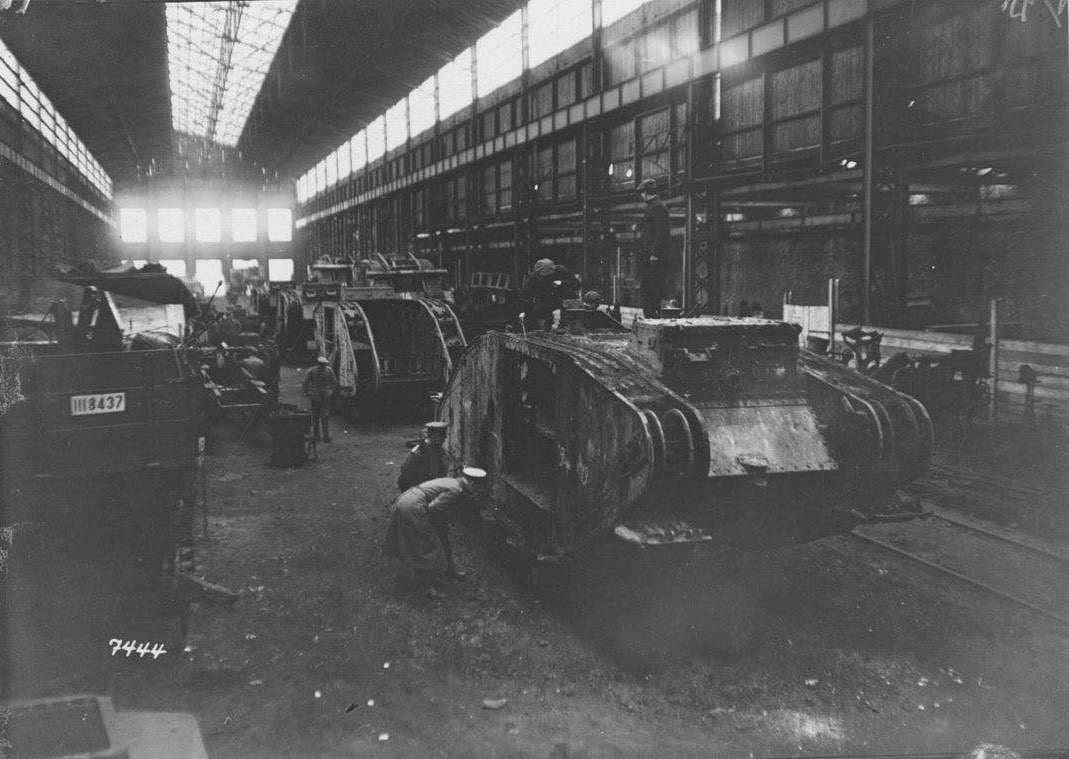

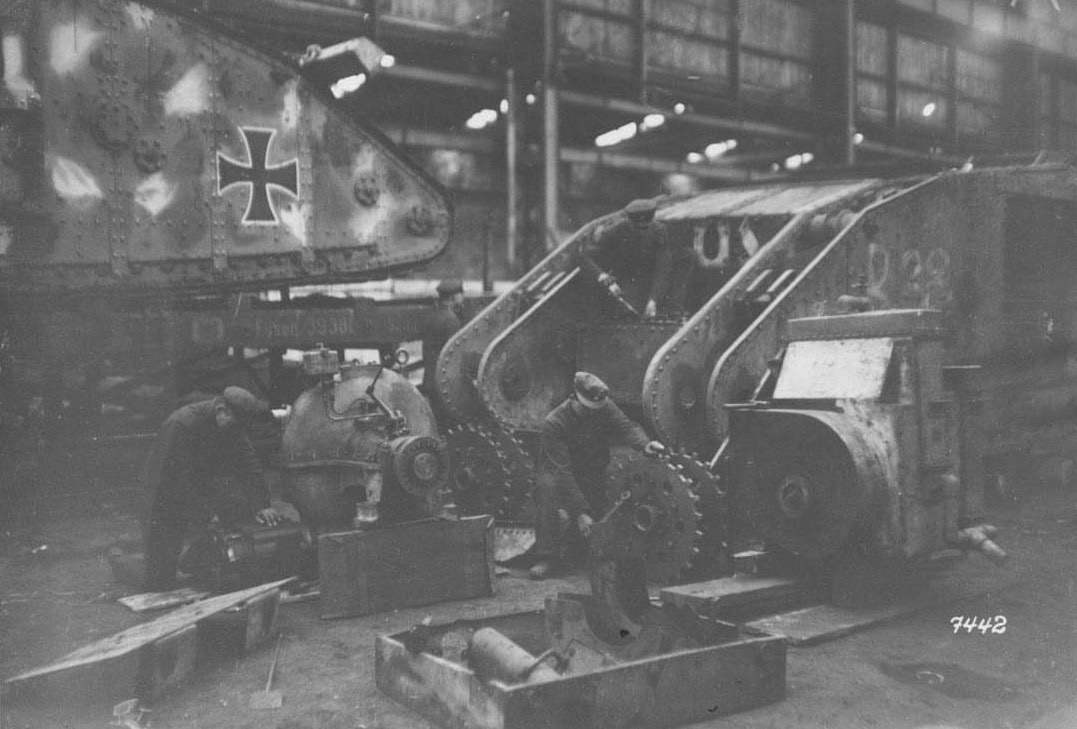

Gunner87 Posted October 13, 2023 #19 Posted October 13, 2023 On 10/5/2023 at 6:40 PM, Proud Kraut said: Thank you all for your kind comments! Yes, the tracks do work. At this point they are in the paintshop. Came across these three photographs today on Facebook. They depict captured Mark IV tanks being repaired, apparently in the BAKP 20 facility at Monceau sur Sambre, a suburb of Charleroi, Belgium.
Proud Kraut Posted October 13, 2023 Author #20 Posted October 13, 2023 These are some fantastic photographs, thanks for sharing!

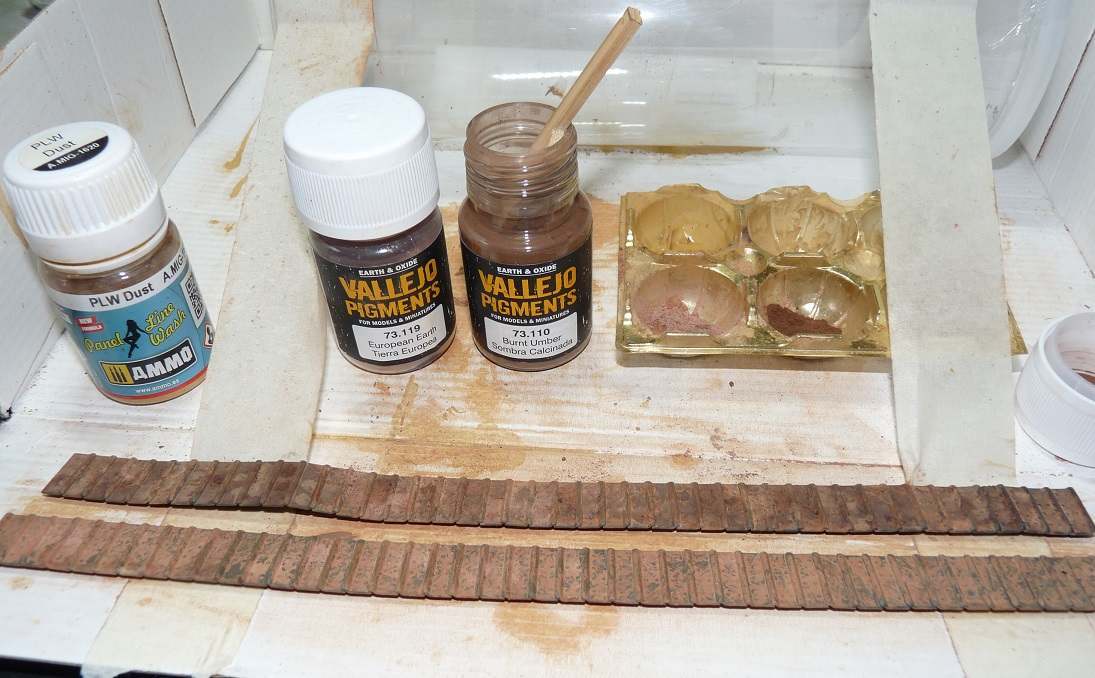

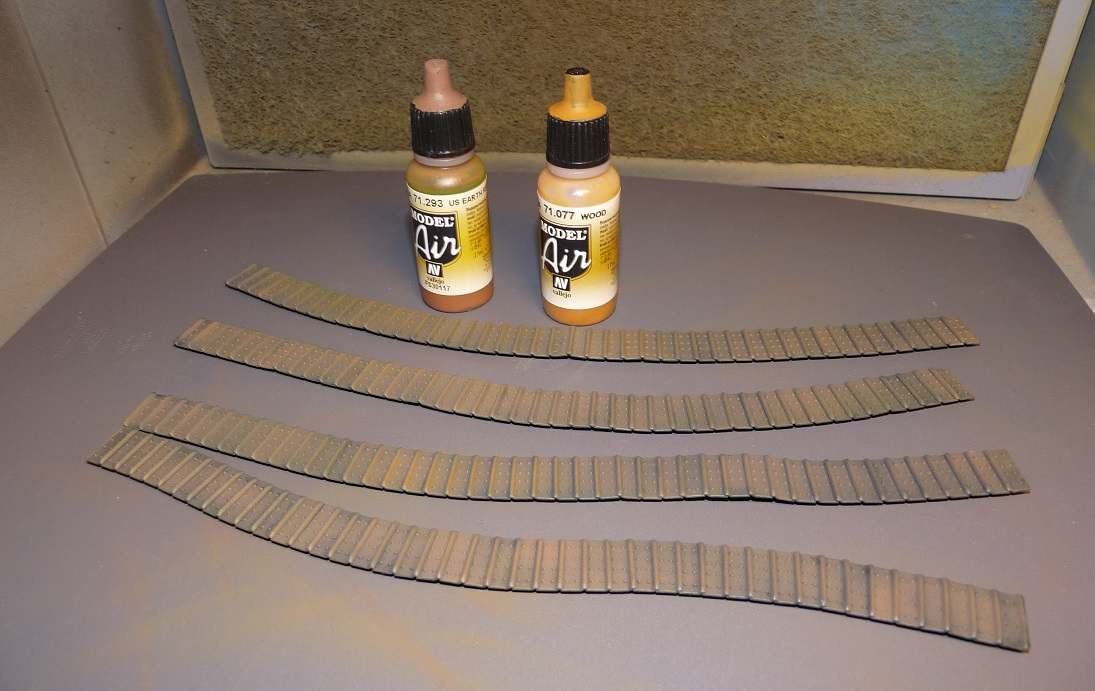

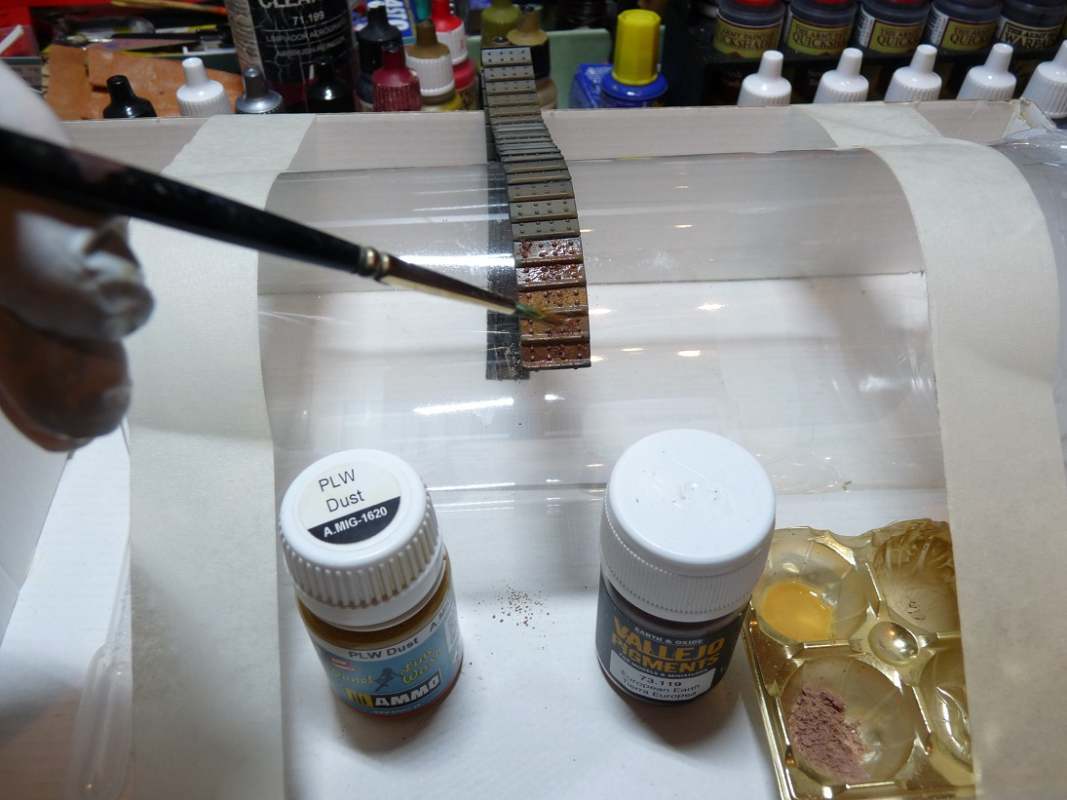

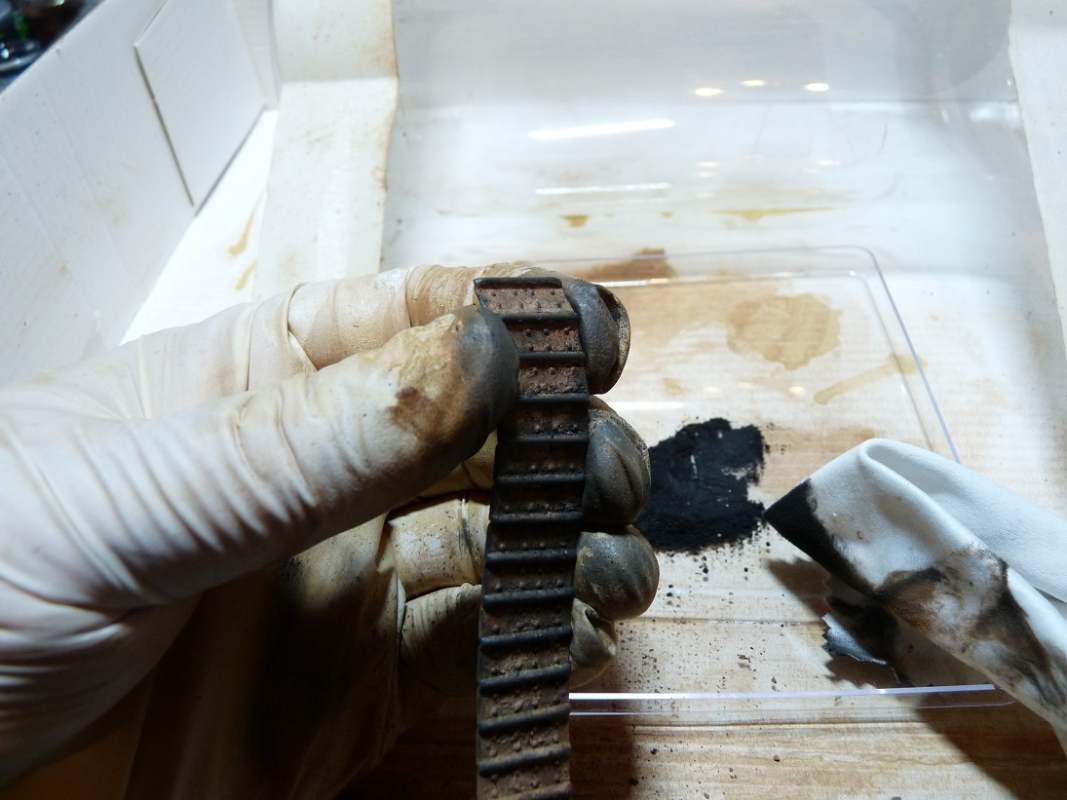

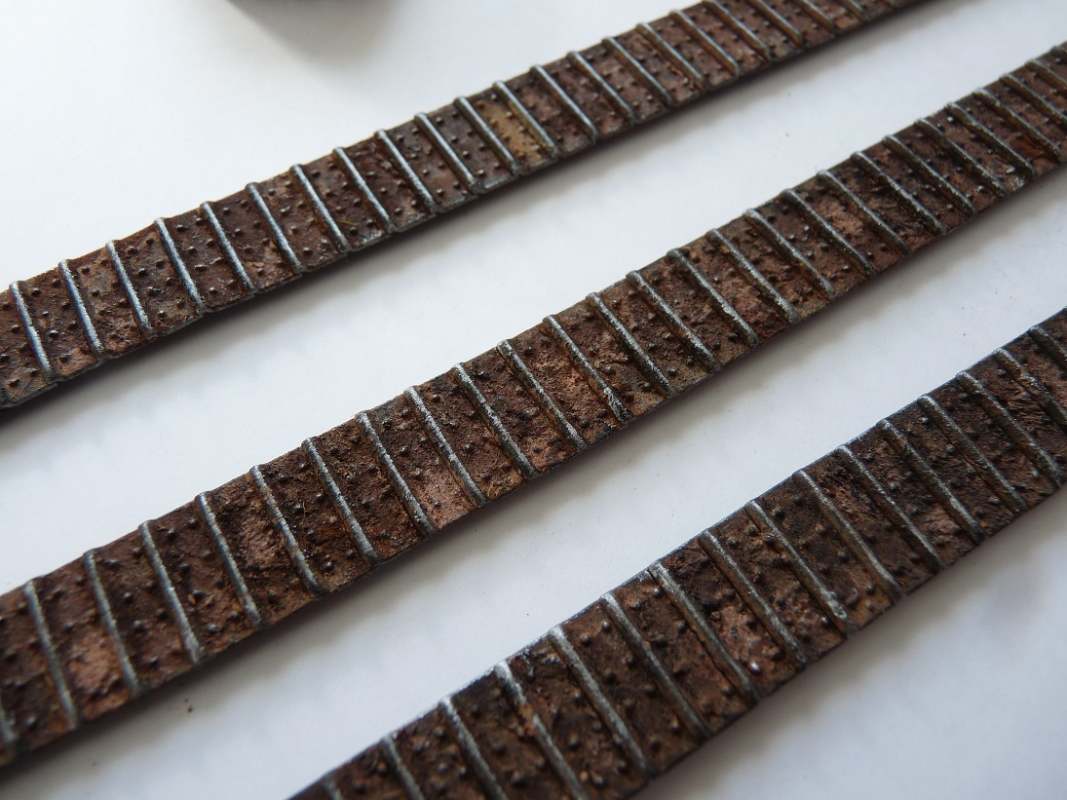

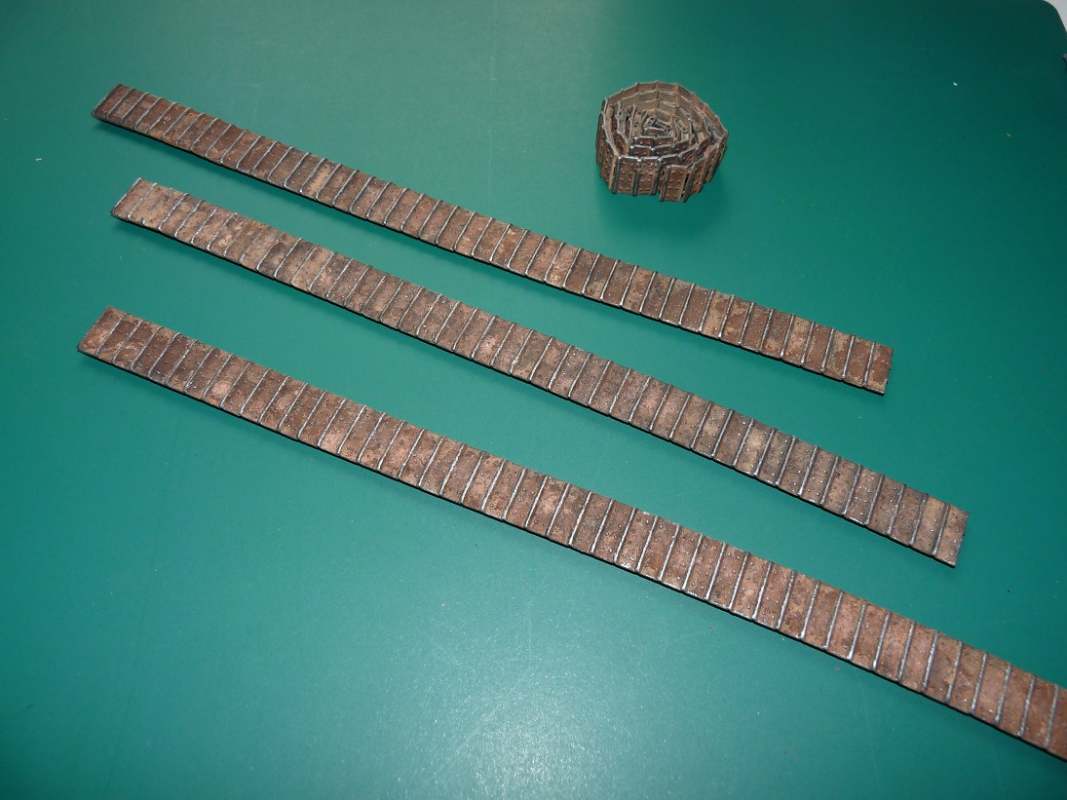

Proud Kraut Posted October 15, 2023 Author #21 Posted October 15, 2023 It took some time, but I think I´m done with the tracks now. After building and washing I airbrushed them with a dark grey primer. I then applied some red brown and orange brown acrylic color to avoid a monotone base color. The mud was done with two different pigment colors. I started with the lighter “European dust” for dry mud and then applied “Burnt Umber” for wet mud (one can mix it with pieces of static grass as well). I used a sand color enamel wash as a medium. When everything has dried, I used a soft piece of cloth to apply “Dark Steel” pigments. Then I “sealed” the pigments on the tracks with matt acrylic varnish. When the tracks were dry again I finally drybrushed them with Vallejo aluminium color. Some pictures.
ArtyScout Posted October 16, 2023 #23 Posted October 16, 2023 Exquisite work on those tracks Lars. They look like they have been on a tank running around "no man's land". That process for your tracks should be pinned as a tutorial. Semper Fi. Manny
Proud Kraut Posted October 16, 2023 Author #24 Posted October 16, 2023 Thank you both! Good idea, Manny. I will work on it.

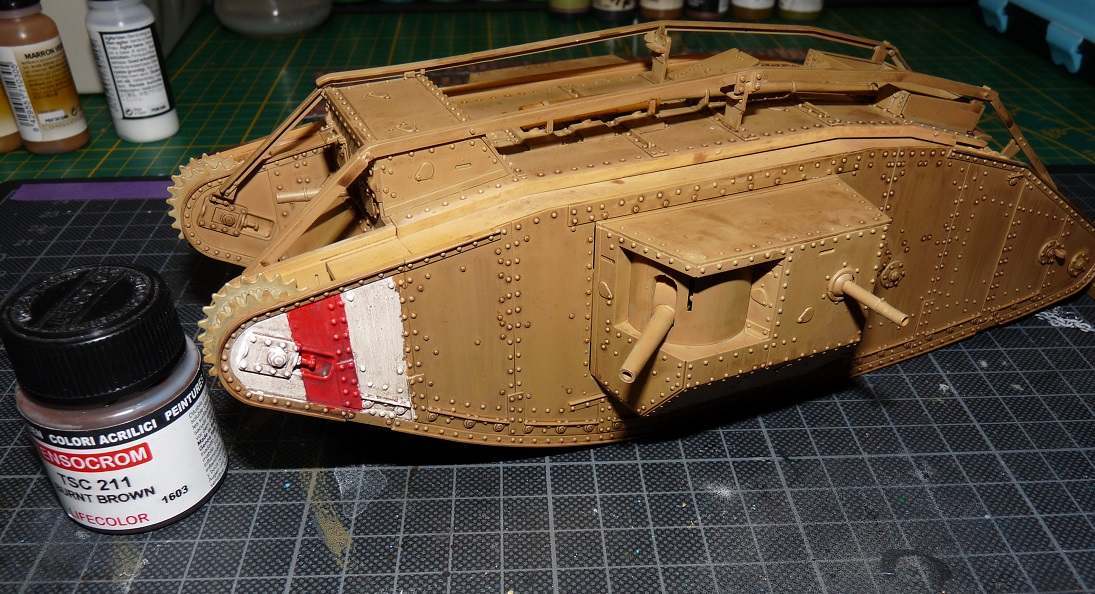

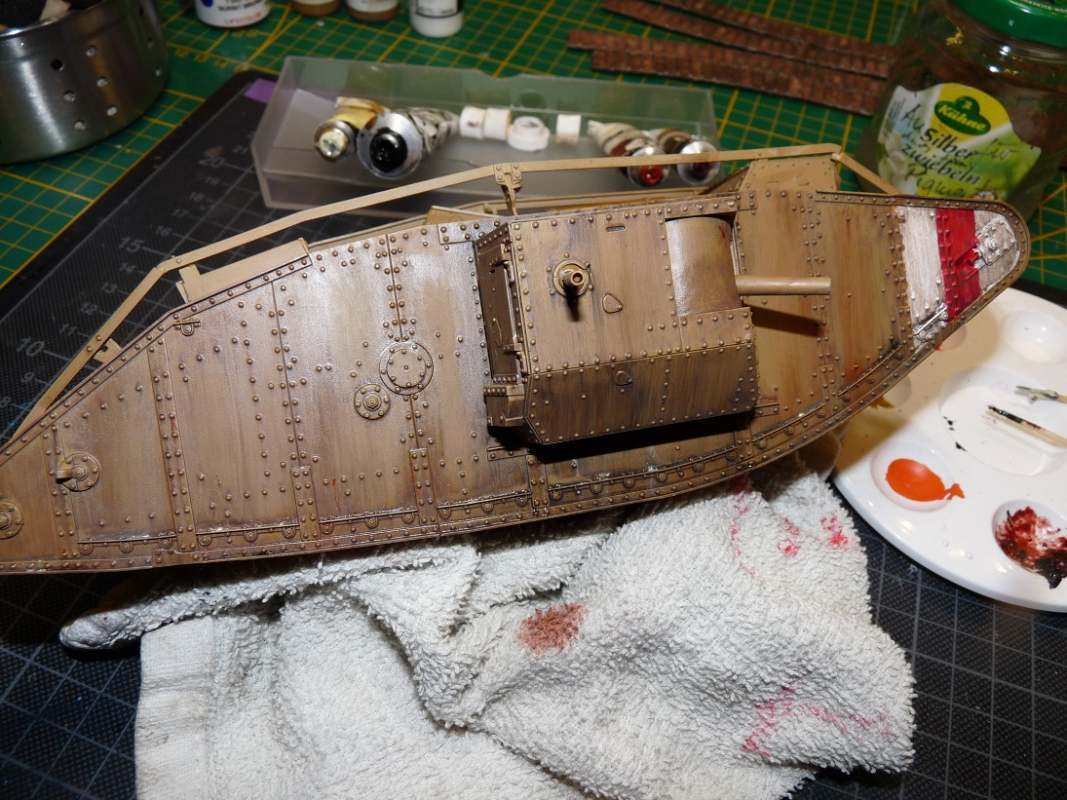

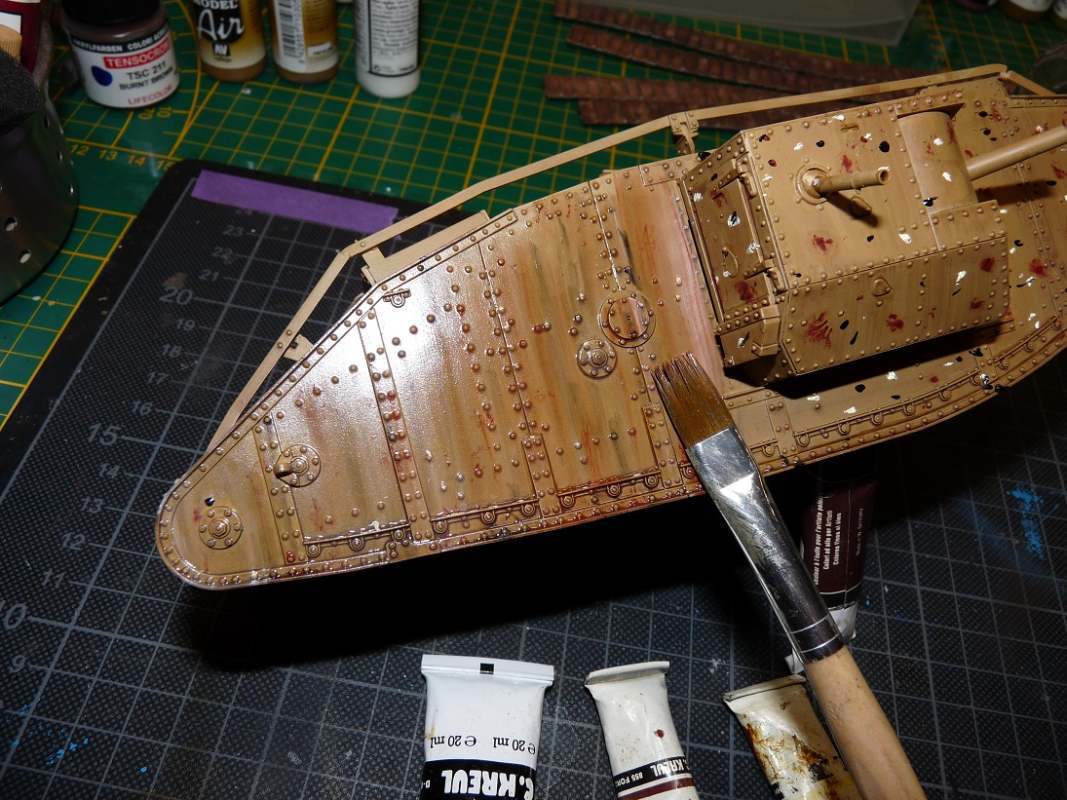

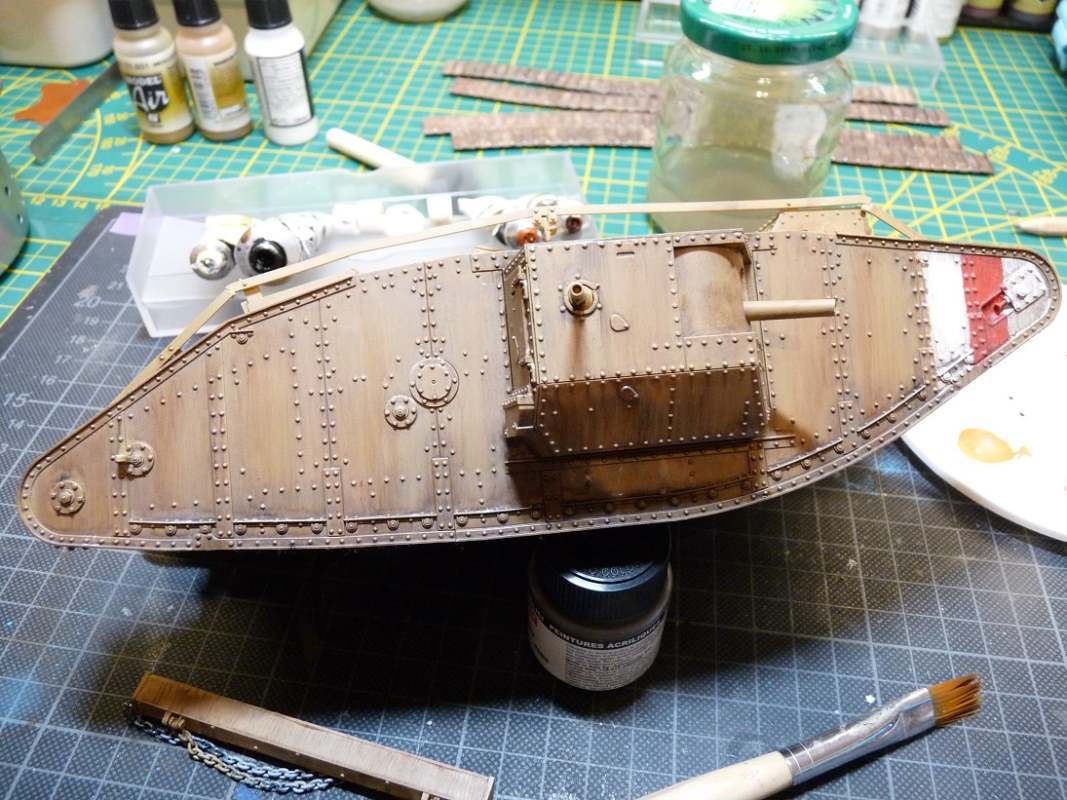

Proud Kraut Posted November 5, 2023 Author #25 Posted November 5, 2023 Washes and fading. The tank received an acrylic color wash "burnt brown" from Tensocrom. After the wash has dried I applied small spots of oil colors (black, burnt umber, red brown and light yellow) with a toothpick. With a flat brush and a little bit of terpentine I painted the spots vertically. The advantage of the oil colors is that they dry so slowly. If you don´t like the result you can modulate the colors with more terpentine or add more color spots etc.
